anvil-serving as a harness product: the quality-gated router

Status: shipped (v0.7.2) — design reference, rev 2026-06-30 (status line updated 2026-07-02). Sets the product direction for anvil-serving as a harness-facing tool (Claude Code, Codex, Cline, Aider, Continue, any OpenAI/Anthropic client) rather than an anvil-coupled serving tier. Grounded in (full findings in the companion notes repo fakoli/anvil-serving-notes): the integration-point audit (the integration point is the runtime, not anvil), the planning-capability eval (local quality is work-class-dependent and measurable), and the harness-intent-routing research (what harnesses can actually carry on the wire — verified).

1. Thesis

anvil-serving is the workload-aware, correctness-gated local-model router for coding harnesses. Local where it's been proven, cloud where it hasn't — verified, with automatic fallback.

A coding harness points at one anvil-serving endpoint. Per request, anvil-serving decides which tier (fast-local / heavy-local / cloud) should serve it, based on a measured per-(model, work-class) quality profile; cheaply verifies the result; and falls back to the next tier (ultimately cloud) when the local answer fails. The harness sees one reliable endpoint and never eats a silent local-quality failure mid-run.

2. Why this is the wedge (and not "another proxy")

Transport is commodity (LiteLLM, claude-code-router, Ollama, OpenRouter). None of them know whether local can actually do this work — they route by static rules (model name, cost, regex). The planning eval is the proof that the missing primitive exists and is buildable:

  • local output is ~100% structurally valid but ~2/5 on dependency reasoning — a dumb proxy sends that to local and silently corrupts a long agent run.
  • the gap is per-work-class and measurable, so routing can be evidence-based.

The defensible asset is therefore not the proxy — it's the quality profile (per model × work-class, measured on the user's own workload) plus the verify-and-fallback loop. Competitors can copy transport in a weekend; they can't copy "we measured that gpt-oss-20b is safe for bounded edits but unsafe for dependency planning on your repos."

3. Intent addressing: callers name a use-case, not a model

The API surface is the product. Callers declare an intent (a capability/use-case preset like planning, quick-edit, review, chat, long-context) — not a model name. The router owns intent → (model, tier, params). This is what turns the quality profile from a hidden table into the product: the caller says "give me a planning-grade answer, local if it qualifies," and our measured knowledge of which model clears that bar is the value. Models become a fungible backend pool; clients never change when models churn (re-point an intent centrally instead).

Decision — the descriptor is a closed enum of named presets, carried in the model field ("model-name-as-intent"). Verified rationale (harness-intent-routing findings, fakoli/anvil-serving-notes): unmodified harnesses expose exactly one operator-controllable routing channel — the model string, which is required in both wire schemas, forwarded verbatim, and free-form (only the genuine upstream validates model names; a router behind the base_url may reinterpret them). Shipping gateways already do this (OpenRouter slugs, LiteLLM aliases, Cloudflare dynamic/<route>). A single flat string can only carry a preset name, so the wire vocabulary must be a closed preset enum; richer multi-axis intent does not belong in the string.

  • Presets are the wire vocabulary; dimensions are the internal expansion. Each preset resolves internally to hard constraints (context length, privacy=local-only, tool/structured-output support, cost ceiling) that filter the candidate pool, plus a quality intent that ranks the survivors via the profile. Filter, then rank.
  • Keep a model: override escape hatch — some callers must pin a model (repro, debugging). Intent is the default/recommended surface; pinning stays available.

4. Architecture

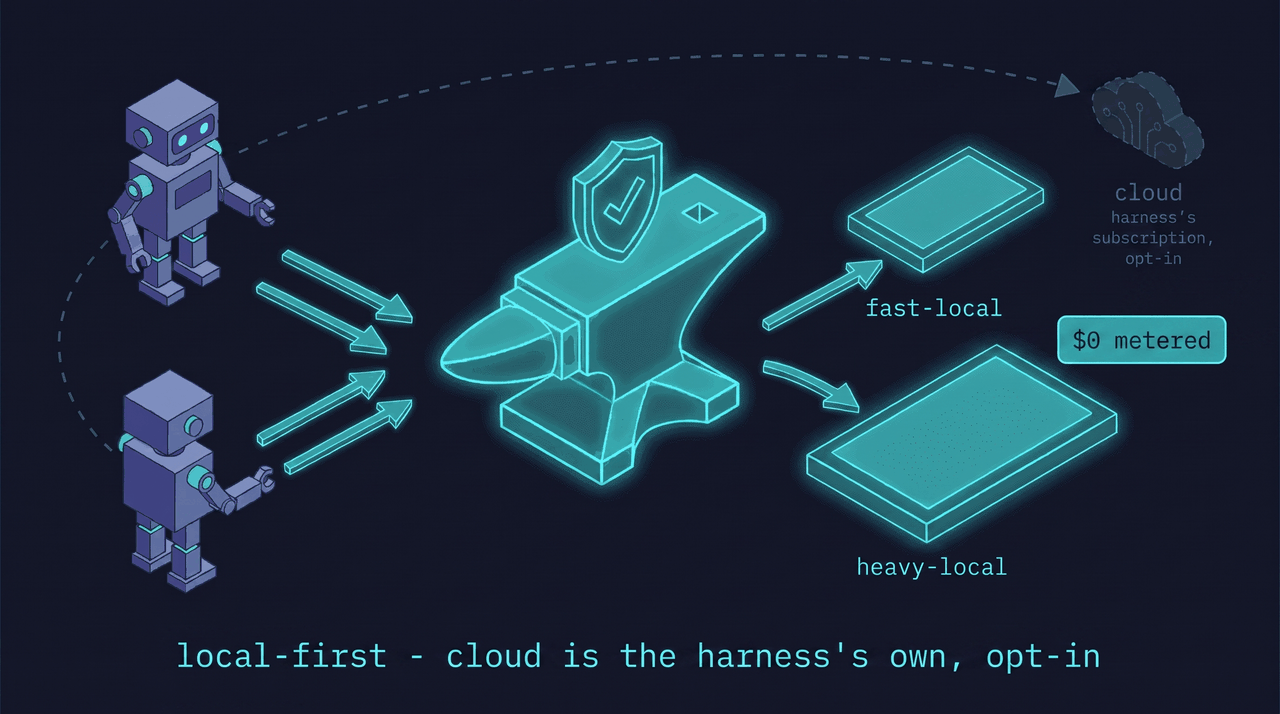

anvil-serving routing pipeline — resolve → route → verify → fallback, across fast-local / heavy-local / cloud tiers

          ┌──────────────────── anvil-serving router ───────────────────┐
harness → │ front door → resolve intent → route → [verify] → return     │ → harness
(CC/Codex)│  (Anthropic   (preset in        (filter by    │  on fail ↘          │
          │   +OpenAI      model field, else  constraints, │  fall back to       │
          │   dialects)    infer work-class)  rank by       │  next tier / cloud  │
          │                                   quality profile)                   │
          └───────────────────────────────┬──────────────┴────────────────────┘
                                           ▼
                fast-local :30001   heavy-local :30000   cloud (Anthropic/OpenAI)
                  (multiplexer-managed)                    (user's existing key/sub)

Control plane (slow, offline): profile → shadow-eval → routing table (the quality profile). Refreshed on demand and continuously calibrated from sampled production traffic.

Data plane (fast, per-request): resolve intent → route → optional inline verify → fallback. Must add negligible latency and must stream.

Routing topology

The diagram below shows the full component topology: what modules exist, how they chain, and — most importantly — where the default path ends (local tiers) vs. the opt-in and escape branches.

flowchart TD H["Harness / Gateway
(Claude Code · Codex · Aider · Cline · OpenClaw)"] subgraph ROUTER["anvil-serving router"] FD["front_door
POST /v1/messages
POST /v1/chat/completions
POST /v1/route"] INT["intent.resolve
Tier-1: preset in model field
Tier-0: classify payload"] POL{"policy.route
quality profile gate"} VF["verify + fallback
commit_window · retry cap"] FD --> INT --> POL POL -->|"allow / allow-with-verify"| VF end subgraph LOCALBOX["Default path — free GPU, zero metered cost"] FL["fast-local :30001
(multiplexer-managed)"] HL["heavy-local :30000
(multiplexer-managed)"] end CLOUD["cloud tier — opt-in only
Anthropic / OpenAI API · metered per-token
(metered_cloud config + API key required)"] SOS["503 exhaustion
gateway transport failover
native subscription provider
flat-rate, zero metered by anvil"] RET([200 to harness]) H --> FD POL -->|"deny, no local candidate"| SOS VF --> LOCALBOX LOCALBOX --> VF VF -->|"verify passes"| RET VF -->|"all exhausted, keyless default"| SOS POL -.->|"opt-in keyed, metered_cloud only"| CLOUD CLOUD --> RET classDef gateNode fill:#0b3b40,stroke:#23b6c4,color:#7fe9f0; classDef cloudNode fill:#16365e,stroke:#58a6ff,color:#cfe6ff; classDef localNode fill:#0b2b0b,stroke:#23c430,color:#7ff09a; classDef escNode fill:#3b1800,stroke:#c47823,color:#f0c887; class POL,VF gateNode; class CLOUD cloudNode; class FL,HL localNode; class SOS escNode;

Key reads: - Solid green (local tiers): the default path — a deny-free, quality-gated request never leaves the GPU box. - Dashed blue arrow → cloud: only drawn when [router].metered_cloud is set and an API key is present; absent from configs/example.toml. - Amber (503 / escape): the keyless-default path — anvil exhausts local, returns 503 with no local tokens committed; the upstream gateway (e.g. OpenClaw) treats this as a transport failure and re-runs on its native flat-rate subscription.

POST /v1/route decision flow

POST /v1/route exposes the routing brain as a decision-only endpoint — the same intent.resolve + policy.route pipeline as the serve path, but it returns a JSON decision and never calls backend.generate. The OpenClaw plugin uses it in authoritative mode; any other client can query it to preview tier selection without incurring inference cost.

flowchart TD REQ["POST /v1/route
completions-shaped body
+ optional signals.work_class"] --> PARSE["parse body
extract signals override"] PARSE -->|"invalid body"| E400["400 — malformed request"] PARSE --> INT["intent.resolve
(same brain as the serve path)"] INT --> ROUTE{"policy.route
quality profile + metered_cloud gate"} ROUTE -->|"tier found"| DEC["200 routing decision
tier · model · provider · work_class
reason · confidence · session_id
backend.generate never called"] ROUTE -->|"all candidates exhausted"| E503["503 — no suitable tier"] classDef gateNode fill:#0b3b40,stroke:#23b6c4,color:#7fe9f0; classDef okNode fill:#0b2b0b,stroke:#23c430,color:#7ff09a; classDef errNode fill:#3b0b0b,stroke:#c42323,color:#f08080; class INT,ROUTE gateNode; class DEC okNode; class E400,E503 errNode;

Status codes: 200 (decision made, even when tier: cloud), 400 (malformed / missing model field), 503 (no tier survives the quality + metered-cloud gate).

5. The quality profile (the moat)

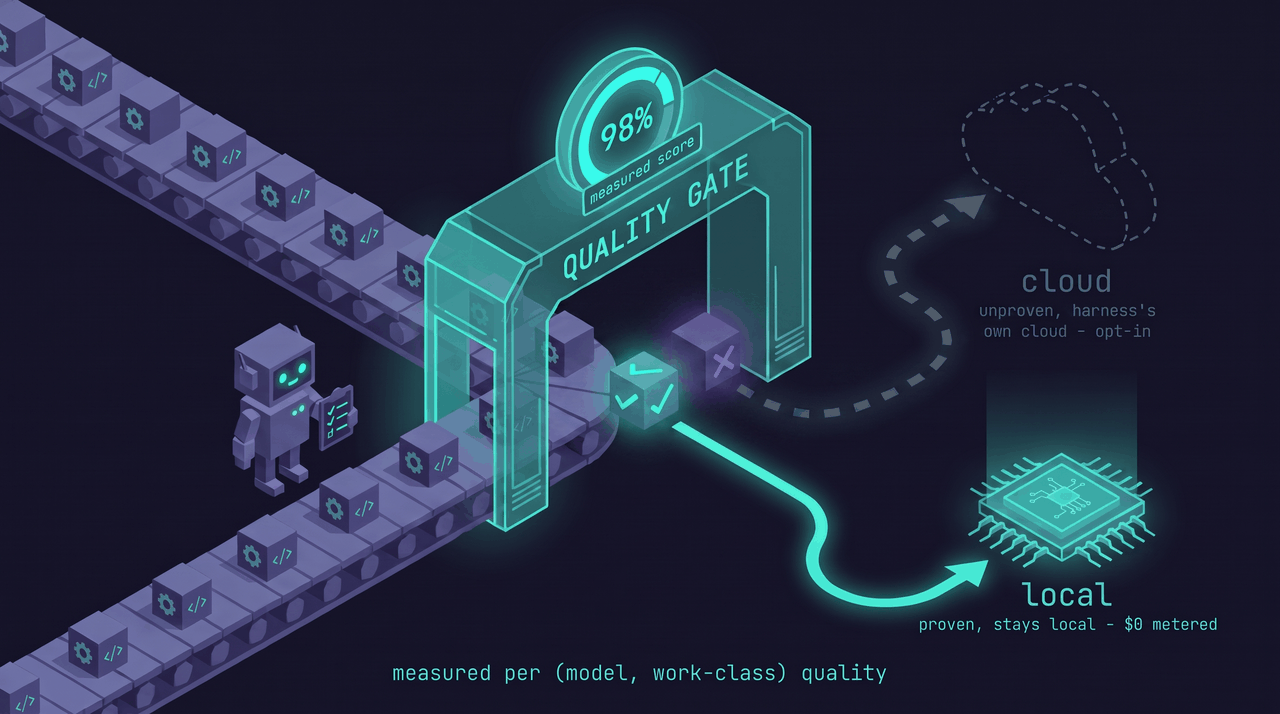

The quality gate — work proven on a tier stays local ($0 metered); unproven work is deferred to the harness's own opt-in cloud subscription; measured per (model, work-class)

A table keyed (model, work-class){quality_score, sample_n, last_measured, decision} where decision ∈ {allow, allow-with-verify, deny}. Populated by:

  1. Bootstrap from the shadow-eval harness already built (eval data in fakoli/anvil-serving-notes): replay representative requests per work-class to each local tier, grade against cloud (deterministic checks + blind/LLM judge), emit the table. Generalize that harness from "planning" to arbitrary work-classes.
  2. Calibrate continuously: async-sample a small % of production responses, grade with cloud off the hot path, update scores. The table tracks model/quant/serve changes over time.
  3. Right-size from the user's real usage via existing profile (which work-classes dominate their traffic — focus measurement where it matters).

This is what makes routing evidence-based instead of vibes.

5.1 Calibration / write-back: bootstrap → review → promote

The profile is a portable profile.json the router loads at startup when [router].profile_path points at it (absent → the built-in hand-authored seed). It is produced by an offline batch the operator runs deliberately — never auto-written from the hot path (ADR-0009). Two batches, sharply separated:

Batch Verb Calls a real tier? Judge CI-safe
Replay (offline bootstrap) anvil-serving eval bootstrap (profile_bootstrap --replay) no — re-grades committed eval fixtures pre-committed blind-judge rows yes
Live (write-back / calibration) anvil-serving calibrate (profile_bootstrap.run_live) yes — your configured LOCAL tiers independent Agent-SDK claude judge (ADR-0007) no

Both emit the same portable artifact; the difference is where the numbers come from (pre-graded fixtures vs. a fresh measurement of your serves).

The calibrate flow (the live write-back loop's operator entry):

  1. Measure. calibrate loads your router config and hands run_live all configured tiers; run_live structurally filters out privacy="cloud" tiers (no self-verification) and measures only the LOCAL ones — one output per (local tier × committed work-class prompt) through each tier's real backend (so extra_body / thinking-off is applied exactly as in prod), graded by the independent Agent-SDK judge:
anvil-serving calibrate --config configs/example.toml \
    --out ./profile.candidate.json \
    --endpoint fast-local=http://127.0.0.1:30001/v1 \
    --i-understand-this-calls-real-tiers
  1. Guarded — never a silent call. The batch refuses to run unless you pass --endpoint TIER=URL covering every measured local tier and --i-understand-this-calls-real-tiers. Missing either → a clean exit 2, zero network, zero claude calls. This is why CI never triggers it. A privacy = "cloud" tier is structurally filtered out and never measured (a Claude judge grading a Claude tier is self-verification — never allowed).

  2. Review. The written profile.json is a candidate. Diff it against your current profile (or the seed) and sanity-check the verdicts before trusting it.

  3. Promote — explicit, never automatic. calibrate writes and instructs; it never edits a config or swaps the live profile. To adopt the candidate, point your router at it and restart:

[router]
profile_path = "./profile.candidate.json"

A configured-but-unreadable profile_path is a startup error (fail fast), never a silent fall back to seeds you meant to replace. Continuous async calibration (the Calibrate item above) is the same grade → write-back mechanism moved off the hot path; calibrate is its manual, operator-driven form.

6. Routing signal: the graceful-degradation tier ladder

Intent resolution degrades gracefully to the highest tier the originating harness can reach. The classifier is not optional — it is the universal floor, because most requests arrive on a single session model string with no declared intent (verified: harnesses pin the model across a small fixed set of slots per session and do not vary it per work-class within the main loop).

Tier Mechanism What it unlocks Available on
0 — Infer classify work-class from raw payload (token count, thinking flag, tool types, image content, system-prompt fingerprint) per-request intent with no caller cooperation — the default operating mode every harness that reaches the endpoint
1 — Named presets in model field caller/config sets a preset token; router maps preset → tier caller-declared coarse (session-slot) intent; removes guesswork for those slots Claude Code, Codex, Aider, Cline, Continue — not Cursor/Amp/Devin
2 — extra_body / header dimensions optional structured hints (budget, latency, verifier policy) multi-axis intent beyond the flat string — config-level, not per-request Codex, Continue; Aider (config). Not Claude Code/Cursor
3 — Native intent field a first-class per-request intent field true per-request multi-axis intent none today — needs a standard/harness change

Taxonomy v0 (start coarse; the eval shows class matters more than precision): chat/Q&A, bounded-edit, multi-file-refactor, planning/decomposition, review/critique, long-context-retrieval. Bias ambiguous classifications toward the safer/cloud tier and log for calibration. (claude-code-router is the production existence proof for Tier 0+1.)

Client-side classification (the hook-plugin pattern). A harness with an in-process model-resolution hook can declare per-request intent itself, escaping the session-coarse limit without any wire-schema change. OpenClaw is the live example: its before_model_resolve hook runs per turn, so a small client plugin classifies the turn and emits an anvil preset id as the modelOverride. The router then receives a declared per-request intent (verbatim in the model field) and needs no new field — it just needs a stable preset vocabulary. This is the preferred shape where available: push Tier-0 classification to the client (cheaper, better-informed; it sees full turn context) and keep the router a clean executor. Closed harnesses (Claude Code, Codex) lack the hook, so the router's own Tier-0 classifier remains their floor.

7. Verify-and-fallback: two modes (contract C4)

Contract C4 has two operating modes depending on whether a metered cloud tier is configured. Full rationale: ADR-0001 · docs/PLAN-advise-and-defer.md.

Mode 1 — Keyless (default)

The default config (configs/example.toml) holds no cloud API key. All candidate tiers are local; a cloud tier is never in the routing pool.

sequenceDiagram autonumber participant H as Harness / Gateway participant R as anvil-serving router participant L as local tier H->>R: request (intent preset in model field) R->>R: resolve intent, route via quality profile R->>L: attempt local (buffered in commit window) L-->>R: candidate output R->>R: cheap structural verify alt verify passes R-->>H: local response (200) else verify fails or all candidates exhausted R-->>H: exhaustion_status (503 by default) — no partial local tokens Note over H: gateway transport failover re-routes
on native subscription provider end

When an allow-with-verify response fails the structural verify gate, route_with_fallback exhausts all candidates (returning FallbackResult(exhausted=True)); the serving layer (RoutingBackend.generate) then raises NoAvailableTierError. The front door maps this to exhaustion_status (default 503, configurable via [router].exhaustion_status to match the gateway's transport-failover trigger). The commit window guarantees no partial local tokens reach the harness before the error response — the harness sees an unambiguous availability signal, not a corrupt partial response.

For a gateway like OpenClaw that fronts the harness, the 503 triggers native transport failover ("overloaded" category), which re-runs the request on the gateway's native subscription provider — the flat-rate subscription the operator already holds. anvil holds no cloud key; the metered surface is absent from the default path. $0 metered API billing.

Live-validation caveat (T005 — pending): that anvil's exhaustion-503 maps to OpenClaw 2026.6.6's "overloaded" failover category is confirmed by reading run.ts but has not yet been validated against a live OpenClaw install. If it does not trigger failover, set [router].exhaustion_status to the status code that does. See Phase 1 in docs/PLAN-advise-and-defer.md.

Mode 2 — Opt-in keyed (metered cloud tier)

An operator who explicitly configures a cloud tier and maps specific work-classes to it via [router].metered_cloud gets router-internal escalation: a verify failure escalates to the cloud tier and returns a 200 with the cloud response, without the harness seeing an error.

sequenceDiagram autonumber participant H as Harness participant R as anvil-serving router participant L as local tier participant C as cloud tier (metered) H->>R: request (intent preset in model field) R->>R: resolve intent, metered_cloud gate → cloud is a candidate R->>L: attempt local (buffered in commit window) L-->>R: candidate output R->>R: cheap structural verify alt verify passes R-->>H: local response (200) else verify fails or backend error R->>C: fall back up the tier chain C-->>R: cloud response R-->>H: cloud response (200) — no partial local tokens leaked end

This mode requires: 1. A [[router.tiers]] entry with privacy = "cloud" and auth_env naming the API key env var. 2. [router].metered_cloud = ["work-class", ...] — the explicit per-intent opt-in list. Empty/absent = cloud is never a routing candidate, even if a cloud tier is declared.

See configs/example-with-cloud.toml for the full opt-in config. Cost fields (cost_input_per_mtok, cost_output_per_mtok) on the tier drive the decision log + metrics.

Billing note: routing through a metered cloud tier incurs per-token API billing on every cloud-served request. This is not the flat-rate subscription — it is the raw api.anthropic.com / api.openai.com metered surface. Prefer Mode 1 (keyless + gateway transport failover) wherever the gateway supports it; use Mode 2 only for single-endpoint harnesses that cannot route cloud themselves.

The allow-path tradeoff: latency vs. error quality

The quality profile assigns each (model, work-class) pair one of three decisions: allow, allow-with-verify, or deny. This decision carries an inherent latency vs. error-quality tradeoff for any request that reaches a local tier:

  • allow (fast-path): tokens are streamed directly to the harness as they arrive — no commit window, minimum latency. If the backend fails mid-stream (dropped connection, OOM-kill, truncated output), partial tokens have already been written. There is no clean fallback: the harness sees a truncated stream rather than an unambiguous HTTP error.

  • allow-with-verify: the response is buffered in the commit window before any token is released to the harness. Verification runs on the buffered output. A failure — whether a backend error or a failed verifier — triggers a clean fallback with zero partial tokens delivered (the C3 guarantee). The harness sees either a complete, verified response or an unambiguous exhaustion status (503 by default).

This asymmetry is inherent to the allow fast-path's latency benefit. It is a deliberate per-(model, work-class) decision: use allow only where a tier is proven reliable enough that mid-stream failure is operationally acceptable; use allow-with-verify where clean fallback matters — structured output that downstream tooling must parse, multi-file edits, or any class where a partial result is worse than no result. The quality profile's calibration loop (§5) provides the evidence base for that decision.

Verification tiers (both modes)

Inline LLM-grading every response would defeat the purpose (cost + latency). So most "quality control" is routing done ahead of time (§3–6); verification is a cheap safety net, tiered:

  1. Prevent (primary): never send a deny work-class to local. Free; catches the biggest risks (e.g. dependency planning → cloud/gateway, always).
  2. Cheap structural verify (inline): near-zero-cost checks that caught real failures in our eval — empty/truncated content (thinking-budget starvation), tool-call JSON that doesn't validate, code that doesn't parse, a diff that doesn't apply, malformed format. Fail → fallback.
  3. Confidence signals (inline, where available): logprob/entropy thresholds, refusal/uncertainty markers.
  4. Async LLM-judge (off hot path): sampled cloud grading that feeds the profile (§5.2), not a blocking gate.

Fallback policy: on verify-fail / error / timeout / low-confidence → retry next candidate in the ordered tier list. Guardrails: cap retries, prevent thrash, make fallback idempotent for the harness (especially mid-stream — see §13), and log every fallback (a fallback is a profile signal: that class may need to be downgraded to deny).

8. Harness integration + the per-harness reality

One front door speaking two dialects so it's zero-config for the major harnesses: - Anthropic Messages API → Claude Code via ANTHROPIC_BASE_URL / ANTHROPIC_AUTH_TOKEN; honor CLAUDE_CODE_SUBAGENT_MODEL / ANTHROPIC_DEFAULT_HAIKU_MODEL slot semantics. - OpenAI Chat Completions → Codex / Cline / Aider / Continue / generic clients. - Translate dialects + absorb backend quirks (thinking-default models need generous max_tokens and can't take chat_template_kwargs over some paths; the sm_120 engine/quant matrix). Absorbing this friction is itself a feature.

Deployment: pip-install (loopback, no auth) or containerized (network-facing, token-authed). The endpoint above is unchanged either way — a harness just points its base_url at it. The router can run as a bare pip install loopback process (today's default, unauthenticated by design) or as a supervised Docker service with built-in bearer/x-api-key auth, opt-in via [server].auth_env, so it can be safely exposed across a cross-box topology (e.g. an OpenClaw gateway box reaching a GPU box's router). See ADR-0004, the top-level README's "Run the router in Docker" section, and examples/fakoli-dark/README.md for the worked example.

Verified support grid (full detail + citations in the finding):

Harness base_url? arbitrary model string? per-request hook / extra fields intent slots/session tier
OpenClaw ✅ per-provider baseUrl ✅ self-allowlisted, verbatim before_model_resolve hook → modelOverride per turn (no header/body channel) per-agent + per-turn override 1→2 (routing)
Hermes Agent provider: custom+base_url ✅ verbatim ❌ over wire (hooks inject user-msg text only) main + ~11 aux + fallback/MoA/subagents 1 (rich)
Claude Code ✅ env ✅ (ANTHROPIC_CUSTOM_MODEL_OPTION skips validation; sent as-is) ❌ (only fixed opaque metadata.user_id) ~3–4 (main/haiku/subagent/advisor) 1
OpenAI Codex CLI ✅ config.toml ✅ free-form ⚠️ config-level http_headers/query_params 1 + subagent 1 (+2)
Aider ✅ env openai/<token> ⚠️ config-level ~3 (main/editor/weak) 1
Cline ✅ field ✅ free-text ❓ undocumented ~1–2 1
Continue.dev apiBase ✅ free string requestOptions.headers (config) role-based 1 (+2)
Cursor ⚠️ backend-mediated + Verify gate ⚠️ fragile server-side auto 0 / unusable
Amp / Devin / closed SaaS ❌ backend-locked none

Scope qualification (important): Cursor, Amp, and Devin are out of scope for self-hosted routing — Cursor mediates through its own backend (Verify-gated), and Amp/Devin can't be repointed at a custom endpoint at all. The README's "any OpenAI/Anthropic client" claim must be qualified to "any client that allows a custom base URL and a free-form model string."

OpenClaw is the one in-scope client that crosses into per-request routing (open-source TS Plugin SDK; its before_model_resolve hook runs per turn and can set modelOverride/providerOverride). Hermes Agent (open-source MIT) is a clean, rich Tier-1 consumer — notably more model slots than Claude Code — but its hooks can't alter the outgoing request, so it stays Tier-1 short of a fork (OpenClaw/Hermes customization findings in fakoli/anvil-serving-notes).

Beachhead decision — OpenClaw-first (focus, not couple). anvil-serving concentrates integration depth on OpenClaw as the first-class client, because it's the one harness that unlocks per-request intent (the before_model_resolve hook → the client-side classification pattern in §6), it's open-source (we can ship a reference plugin and patch upstream), and one OpenClaw integration reaches the many chat surfaces it already bridges. This is focus, not coupling: the core router stays protocol-standard (Anthropic + OpenAI dialects), so every other harness still gets Tier 0/1 for free, and the OpenClaw piece is a thin, swappable adapter/plugin — if OpenClaw stalls, the core survives and another hook-capable harness takes the beachhead. (Same lesson as not coupling to Anvil: integrate at a standard seam, focus effort at one client.) This is anvil-serving's choice and does not affect Anvil-the-ledger's harness-agnostic mandate — different products, different mandates. Risk to manage: OpenClaw is young and the extension surface is churning (medium risk) — verify the plugin/provider API hands-on before over-investing. Buildable spec + the validate-first gaps: OPENCLAW-INTEGRATION-SPEC.md.

9. Preset vocabulary, discovery, and transparent responses

  • Vocabulary = a closed enum sized to harness slots. Don't over-design. A handful of presets mapping onto taxonomy v0 (§6) and the slots harnesses actually emit (main / background / subagent). Flat — no multi-axis encoding in the string.
  • Discovery via /v1/models. Serve a /v1/models listing the preset tokens with human-readable names/descriptions, so presets are first-class in the harness UI. Claude Code populates its /model picker from a gateway's /v1/models when CLAUDE_CODE_ENABLE_GATEWAY_MODEL_DISCOVERY=1; ANTHROPIC_CUSTOM_MODEL_OPTION is the single-entry alternative.
  • Transparent response. The abstraction is on the request; the response stays honest — set the response model to the real model/tier that served (OpenRouter does this), and log the (declared-or-inferred intent → tier → verify result → fallback?) decision. Hiding what ran kills debuggability and the local-first trust story.
  • Session stickiness + mapping versioning. Don't swap models mid-conversation unless quality/health forces it (turn-level switch boundaries). The same intent may route differently as the profile recalibrates — surface a mapping version and allow pinning for reproducibility.

10. Extensibility / plugin seams

The router is a pipeline, so "plugin architecture" mostly means naming its stages as typed seams (typing.Protocol + a small in-process registry), not a framework. Split: - Internal seams — now: Protocols + registry so maintainers drop in implementations without touching the core. Nearly free; good structure for M0–M2. The multiplexer already proves the pattern (per-engine SGLang+vLLM dispatch behind one interface). - Public third-party plugin SDK — defer to M3+: importlib.metadata entry points (stdlib — no plugin lib, preserves "stdlib-only by design"), a versioned contract, a capability manifest, trust. Publishing a plugin API too early freezes interfaces still in flux.

Seam (Protocol) swaps plane early?
Intent/preset a use-case (its constraints + quality req + candidate pool + verifiers) control headline extension point
Dialect (front door) Anthropic / OpenAI / future protocols data yes (M0 needs 2)
Classifier request → work-class data yes
RoutingPolicy (intent, profile, health) → ordered tier list data yes
Backend tier → inference engine data exists (multiplexer)
Verifier response → pass/fail/score (cheap, chainable) data yes
Grader async quality grading for calibration control yes
ProfileStore where the quality table lives control maybe
Observer/hook logging, metrics, fallback events cross yes

Contract rules from day one: (1) failure isolation = fallback — a plugin that throws/times out is treated as another fallback trigger (composes with the wedge; wrap + circuit-break); (2) latency budget — data-plane plugins declare & respect a budget, heavy work goes async; (3) versioned contracts — registry refuses incompatible plugins (why the public SDK waits); (4) trust — plugins run arbitrary code in the request path (fine for local-first/own; signing/allowlist for third-party). Don't build dynamic loading or a manifest spec until a seam has a real second impl.

11. Reuse map — most of this exists

Capability Module Status
Right-size from real usage profile exists
Per-model serving facts / sane defaults models sync, analyze exists / designed
Bring up + on-demand model swap on one GPU multiplexer (multi-engine, single-resident) exists
Correctness gate preflight exists
Throughput / capacity measurement benchmark exists
Per-work-class quality measurement shadow-eval harness built (generalize)
Front door + intent-resolve + route + verify + fallback new router module the build

The genuinely-new surface is the router data plane + the quality-profile control plane. The serving substrate is already here.

12. MVP milestones

  • M0 — front door: Anthropic + OpenAI endpoints, pass-through to one backend, streaming. Makes anvil-serving drop-in for Claude Code today. Define the Dialect and Backend Protocol seams.
  • M1 — Tier 0 + Tier 1 together: the classifier (Tier 0, the floor) and preset parsing from the model field (Tier 1) — not Tier 1 alone, because most traffic arrives without a declared intent. Tier rules over the multiplexer (bounded→fast, long-ctx→heavy, planning/review→cloud); hand-authored table. Serve /v1/models preset discovery.
  • M2 — the wedge: cheap structural verify + verify-gated fallback (streaming commit window; cloud escalation is the opt-in keyed mode — the keyless default returns an exhaustion-503 for gateway handoff) and transparent responses (echo the served model/tier). First release delivering the unique promise.
  • M3 — measured table + plugin SDK: generalize the shadow-eval to populate the quality profile per work-class; replace the hand-authored table; add async calibration; expose public plugin entry points. The moat turning on.

Ship M0–M2 to be useful and unique; M3 makes it defensible.

13. Risks / open questions

  • Per-request granularity is capped by the harness (verified constraint): a harness configured with one model can't declare different intents per call within the main loop — the classifier is load-bearing, not optional. Design around it; don't assume callers can tag every request.
  • Classification accuracy — wrong class → wrong route. Mitigation: coarse taxonomy, bias ambiguous→safer tier, log+calibrate. (Eval shows class matters more than precision.)
  • Streaming + mid-stream fallback — the hardest engineering problem: both APIs stream via SSE (OpenAI data-only chunks; Anthropic named events), and verify-before-deliver fights low-latency streaming. Likely need a short non-streamed "commit window" for fail-prone classes, or speculative buffering. Spike this early.
  • Verify cost/latency — must stay structural/cheap inline; anything heavier goes async.
  • Fallback thrash / cost blowups — caps, circuit-breakers, per-session budget awareness.
  • Stateful agents — switching tiers mid-conversation must preserve context; turn-level boundaries.
  • Profile staleness — model/quant/serve swaps invalidate rows; key the table on a serve fingerprint and re-measure on change.
  • Privacy — async cloud calibration sends sampled local traffic to a cloud grader; opt-in and redactable (a selling point for the local-first crowd, so get it right).

14. Success metrics

  • % of agent traffic safely served local (the capacity/cost win) at a bounded rework rate (the quality guarantee) — the two numbers that define the product.
  • Silent-failure rate ≈ 0 (verify+fallback catches local misses before the harness does).
  • Cloud tokens saved vs all-cloud, holding accept-rate constant.
  • Drop-in time (minutes from pip install to a harness running through it).

Appendix — config recipes (how to carry intent today)

Claude Code (intent preset per slot):

export ANTHROPIC_BASE_URL="https://anvil.local"
export ANTHROPIC_AUTH_TOKEN="…"                  # → Authorization header
export ANTHROPIC_MODEL="planning"                # main-loop intent, sent verbatim
export ANTHROPIC_DEFAULT_HAIKU_MODEL="quick-edit" # background/utility intent
export CLAUDE_CODE_SUBAGENT_MODEL="review"       # subagent-class intent
export ANTHROPIC_CUSTOM_MODEL_OPTION="long-context"   # optional: surface a preset in /model
export CLAUDE_CODE_ENABLE_GATEWAY_MODEL_DISCOVERY=1   # optional: enumerate router presets
# enterprise fleets: add the preset tokens to availableModels if that allowlist is set

Aider (preset rides in the model string; openai/ prefix forces compat routing):

export OPENAI_API_BASE="https://anvil.local/v1"
export OPENAI_API_KEY="…"
aider --model openai/planning --editor-model openai/quick-edit --weak-model openai/chat
# the "model … not familiar with" warning is cosmetic; routing works

Cline / Continue.dev — select "OpenAI Compatible"; Base URL https://anvil.local/v1, Model (ID) = a preset token. Continue can attach Tier-2 hints via requestOptions.headers.

OpenAI Codex CLI (~/.codex/config.toml) — Tier 1 + optional Tier 2 side-channel:

model = "planning"
model_provider = "anvil"

[model_providers.anvil]
base_url = "https://anvil.local/v1"
wire_api = "chat"                                  # third-party gateways commonly use "chat" (version-dependent)
http_headers = { "x-anvil-intent" = "planning" }   # optional Tier-2 dimension

Cursor / Amp / Devin — not supported for self-hosted routing (backend-mediated / backend-locked).

Selecting a mode of operation (--mode / ANVIL_MODE) — ADR-0011

anvil runs exactly one mode at a time — agentic (SGLang cache-friendly agent tiers, ADR-0008) or flexibility (any-engine single-turn quality tiers, ADR-0010). The whole router binds that one mode's tiers + presets; switching modes is a config reload/restart, never per-request. Two ways to point serve at a config:

anvil-serving serve --config configs/example.toml   # explicit path (unchanged; bypasses modes)
anvil-serving serve --mode flexibility               # resolve the mode to its config file
ANVIL_MODE=flexibility anvil-serving serve           # same, via env

Which mode is active — precedence --mode > ANVIL_MODE > [modes].active_mode > default (agentic). The active_mode default lives in an optional [modes] manifest (see configs/modes.example.toml) pointed at by ANVIL_MODES_CONFIG.

Which file a mode maps to — precedence ANVIL_CONFIG_<MODE> > the [modes].<mode> entry > built-in default (configs/example.toml for agentic, configs/example-flexibility.toml for flexibility). Point a mode at a deployed config without editing anything, e.g. export ANVIL_CONFIG_FLEXIBILITY=/etc/anvil/flexibility.toml. An unknown mode (serve --mode nonsense, or a bad ANVIL_MODE) errors clearly; bare serve with no selector is a usage error (the router never silently boots a default). The implementation is the thin resolver in anvil_serving/router/modes.py.
