anvil architecture¶

Condensed reference for the current v0.6.13 standalone state. For the original v0 vision and aspirational items, see specs/2026-05-24-anvil-v0.md. For what is planned but not yet shipped, see roadmap.md.

This document is intentionally short — readable in ten minutes — and describes only what exists on disk today. Every entity, command, tool, and hook listed here has a file pointer; if it isn't pointed at, it doesn't ship.

Mental model¶

anvil is to agentic software work what Terraform is to infrastructure: a canonical state file holds the project record, derived views (work packets, markdown plans, dependency graphs) are projected from it, and the plan-then-apply rhythm gates execution behind review. The PRD is the configuration; the SQLite database is the state; anvil apply is the commit point that records evidence and transitions a task to done. Drift (stale claims, orphan branches, sync conflicts) is detected and reconciled, not papered over.

A single project holds several release-scoped PRDs in one state.db and one events.jsonl. Each PRD is a separately-gated, revisable plan that carries a target version/tag (a release or milestone); its requirements, features, and tasks are partitioned by an owning prd_id. The single-PRD project is just the degenerate case — one default PRD owning every row. Because each PRD gates independently, the effective claim gate keys on the task's owning PRD: a task is claimable only after its PRD is approved for its exact current source/material lineage, even while a sibling PRD is still draft. Conflict detection, by contrast, spans all PRDs — two tasks in different PRDs that touch the same file land in one conflict group, so the single-winner guarantee holds across the whole project, not per-PRD. See _positioning.md for the per-PRD-as-scoped-stack framing.

The full positioning (the five differentiators and the Terraform analogy) is maintained in _positioning.md; this document does not duplicate that material.

Behaviour-first PRD readiness¶

The PRD is an executable contract across five layers: PRD intent → user behaviour → technical design → task proof → outcome evidence. Its optional ## Assumptions section stores typed records (A### ID, statement, rationale, and optional requirement references) in the canonical PRD projection. Parse and revision events carry those records, SQLite persists them as JSON, and missing fields default safely for old event logs.

anvil prd assess and the planning-tagged assess_prd MCP tool run a pure, deterministic, read-only assessment over the parsed PRD. Findings include a source location, explanation, and challenge question. They are advisory: neither surface changes parsing, status gates, claims, approval, or evidence. The parser’s optional EARS/Gherkin recognition informs the assessment; it does not introduce a required grammar.

The planner receives all active assumptions. Packet generation then filters them to global assumptions plus those whose requirement references intersect the task’s feature, keeping autonomous defaults visible to implementation and review without leaking unrelated product context.

Component layers¶

graph TD
    User["Human developer"]
    Agent["AI coding agent<br/>(Claude Code, Codex, Cursor, ...)"]

    subgraph Entry["Entry surfaces"]
        CLI["CLI<br/>anvil &lt;cmd&gt;"]
        MCP["MCP server<br/>FastMCP stdio<br/>36 tools (24 on default surface)"]
        Hooks["Hooks<br/>SessionStart / PreToolUse / PostToolUse"]
    end

    subgraph Plugin["Plugin layer (operating discipline)"]
        Skills["Skills<br/>start-prd, prd, plan, claim,<br/>execute, finish, state-ops,<br/>resolve-decisions"]
        Agents["Plugin agents<br/>planner, critic, sentinel,<br/>state-keeper, docs-scribe"]
    end

    subgraph Engine["State engine"]
        Claims["Claims manager<br/>lease + heartbeat + stale reap"]
        Transitions["Transitions<br/>pure state machine"]
        Planning["Planning engine<br/>template parser + LLM helpers"]
        Context["Context engine<br/>work-packet renderer"]
        Review["Review engine<br/>gates: PRD, readiness, evidence"]
        GitOps["Git ops<br/>agent/&lt;task&gt;-&lt;slug&gt; branches"]
    end

    subgraph Storage["Storage layer"]
        Backend["Backend Protocol"]
        SQLite[("SQLite<br/>state.db<br/>WAL + BEGIN IMMEDIATE")]
        Events[("Events<br/>events.jsonl<br/>append-only")]
    end

    subgraph Sync["Sync engine"]
        SyncProto["SyncProvider Protocol<br/>+ registry"]
        GitHub["GitHubIssuesProvider<br/>gh CLI + httpx"]
    end

    User --> CLI
    User --> Skills
    Agent --> MCP
    Agent --> Skills
    Agent --> Hooks

    CLI --> Engine
    MCP --> Engine
    Hooks --> CLI
    Skills --> CLI
    Skills --> Agents
    Agents --> CLI

    Claims --> Backend
    Transitions --> Backend
    Planning --> Backend
    Context --> Backend
    Review --> Backend
    GitOps --> Backend

    Backend --> SQLite
    Backend --> Events

    CLI --> SyncProto
    SyncProto --> GitHub
    GitHub --> Backend

Source: assets/diagrams/component.mmd.

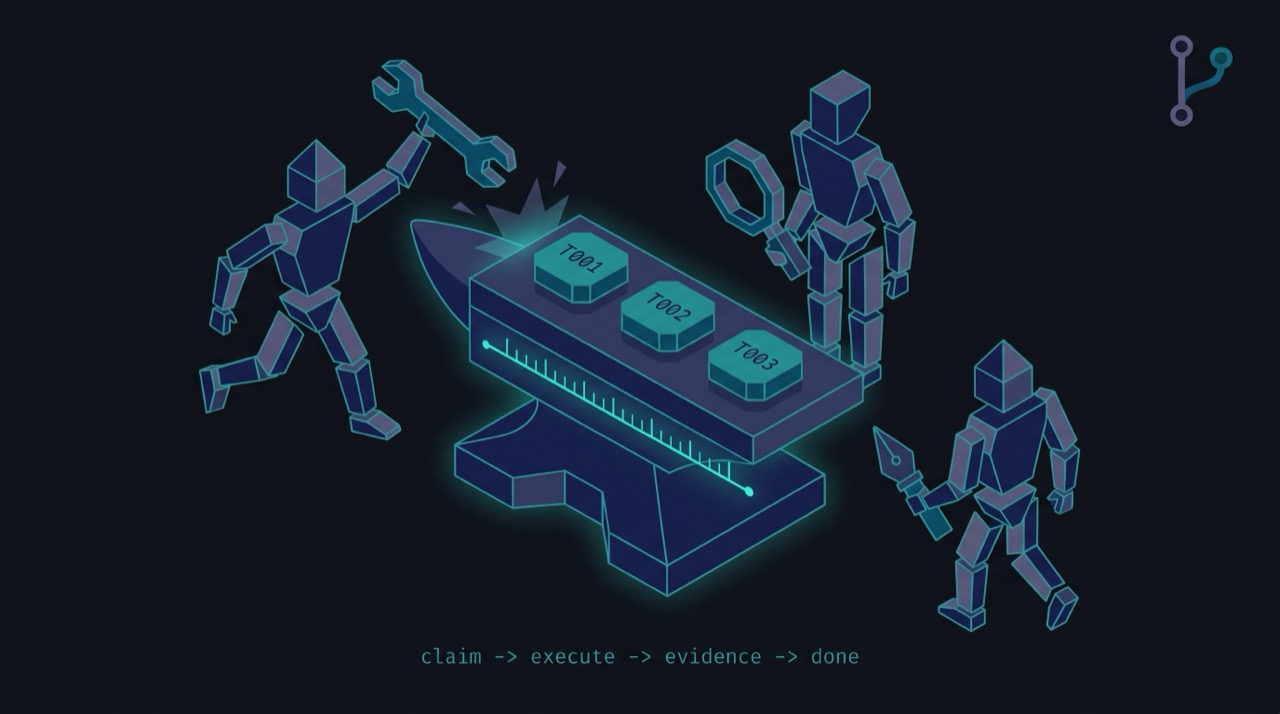

Isometric diagram: agents claim tasks from the anvil surface, execute, and submit evidence — claim → execute → evidence → done

Per-layer responsibilities¶

Layer	What it owns	Key files
Plugin manifest	Discoverability, version, keywords	`.claude-plugin/plugin.json`
CLI	Pure state operations — CRUD, scoring, packet generation, sync. No workflow choreography.	`bin/src/anvil/cli/__init__.py`
MCP server	Runtime-neutral capability surface — 36 registered stdio tools; the default execution surface serves 24 on the wire, and the 12 planning-tagged tools (including `assess_prd`) require `ANVIL_MCP_PLANNING=1`	`bin/src/anvil/mcp_server.py`
Hooks	Non-blocking enforcement the model would otherwise forget	`hooks/hooks.json`, `bin/src/anvil/cli/hooks.py`
Skills	Workflow choreography — one-question-at-a-time, propose approaches, gate transitions	`skills/*/SKILL.md`
Plugin agents	Specialist roles owned by this plugin	`agents/*.md`
Backend protocol	The seam between state-engine logic and storage; SqliteBackend is the only impl that ships	`bin/src/anvil/state/backend.py`, `bin/src/anvil/state/sqlite.py`
Transitions	Pure state machine — no I/O, no DB, no side-effects beyond `model_copy()`	`bin/src/anvil/state/transitions.py`
Claims manager	Atomic lease + heartbeat; stale detection at coordination entry points	`bin/src/anvil/claims/manager.py`, `bin/src/anvil/claims/stale.py`
Planning engine	Template-first PRD parser; deterministic behavioural-readiness assessor; optional LLM task generation; deterministic six-dim scorer	`bin/src/anvil/planning/`
Context engine	Renders work packets (markdown + JSON) from canonical state, including relevant typed PRD assumptions	`bin/src/anvil/context/packets.py`
Review engine	Pure transition-gate functions (readiness, evidence)	`bin/src/anvil/review/gates.py`
Git ops	Auto-create `agent/<task>-<slug>` branch on `claim`; optional worktree	`bin/src/anvil/git_ops/`
Sync engine	Bidirectional GitHub Issues projection via the `SyncProvider` Protocol	`bin/src/anvil/sync/`

The two iron rules of the layering:

The state engine is the only mutation authority. CLI and MCP are public state surfaces that resolve the same project state and call the same engine contracts; neither hand-writes storage. Active hooks delegate through the shell-free CLI dispatcher. The two provider reads are intentionally CLI-only execution transports, with their versioned contracts discoverable through describe_surface.
Transitions are pure. Every status change is a function from (entity, context) -> new entity. Persisting the result is the backend's job, not the transition's. This is what makes the JSONL replay possible.

Data model¶

The full type system lives in bin/src/anvil/state/models.py — Pydantic v2 models and enums validated at every transition (extra="forbid", validate_assignment=True); all timestamps are UTC-required. The tables below intentionally summarize the core set. The generated CLI/MCP schemas and the source model file are authoritative for the complete public shape.

Core enums¶

Enum	Values	Purpose
`PRDStatus`	draft, reviewed, approved, rejected	Gates task claimability
`FeatureStatus`	proposed, ready, in_progress, done	Coarse-grain status on a Feature
`TaskStatus`	proposed, drafted, reviewed, ready, claimed, in_progress, blocked, needs_review, accepted, done, rejected	The 11-status task lifecycle (see Task lifecycle)
`TaskPriority`	low, medium, high, critical	Sort key for `anvil next`
`ClaimType`	task, feature, file_scope, exploratory	Distinguishes whole-task vs partial leases
`ClaimStatus`	active, released, stale, force_released	Lease lifecycle
`ReviewTargetKind`	prd, task, feature	What a `Review` row points at
`ReviewDecision`	approve, reject, needs_changes	Reviewer verdict
`ExternalSystem`	github_issues	Canonical first-party provider ids (extensible via registry)
`SyncState`	in_sync, local_ahead, remote_ahead, conflict, external_deleted, remote_unknown	Per-mapping conflict / health label
`ConflictResolutionStrategy`	local_wins, remote_wins, prompt, manual_merge	How to resolve a divergence

Selected embedded value objects¶

Model	Purpose
`Score`	Six-dimension scoring on a Task: complexity, parallelizability, context_load, blast_radius, review_risk, agent_suitability (each 1-5 or null)
`Verification`	Embedded on Task: `commands`, `manual_steps`, `required_evidence` — the contract the evidence gate checks against

Core top-level entities¶

Entity	Purpose
`Project`	Root entity that owns all other entities in the database — including several PRDs
`PRD`	A release/milestone-scoped, separately-gated, revisable plan carrying a target version/tag; gates claimability of the tasks it owns. A project holds one or more PRDs (a `default` PRD plus any named release PRDs), all in the same `state.db`/`events.jsonl`
`Requirement`	A single atomic requirement derived from a section of a PRD; partitioned by its owning `prd_id`
`Feature`	A logical grouping of tasks that delivers a user-observable capability; partitioned by `prd_id`
`Task`	The primary unit of work — claimable, scoreable, evidence-backed; carries the owning `prd_id` that its claim gate keys on
`Claim`	An exclusive lease that an agent holds on a Task while working on it
`Evidence`	Completion evidence submitted by an agent after finishing a Task
`Decision`	An architectural or design decision recorded for audit and context
`Review`	A human or agent review verdict on a PRD, Task, or Feature
`Event`	An immutable append-only log entry; monotonic id `E000001`, `E000002`, ...
`SyncMapping`	Tracks a Task's relationship to an issue in an external system
`ConflictGroup`	A named set of tasks whose `expected_files` overlap

Type aliases (TaskID, FeatureID, RequirementID, ClaimID, EvidenceID, DecisionID, ReviewID, EventID) are plain str newtypes — no runtime overhead but grep-able at every call site.

Most entities use the shared mutable model config:

_MODEL_CONFIG = ConfigDict(
    frozen=False,             # mutable for state transitions
    validate_assignment=True, # but assignment-validated end-to-end
    extra="forbid",           # unknown fields are an error
)

PRD is the exception: exact-source provenance makes it a frozen value object. PRD lifecycle transitions construct a fully revalidated copy rather than using assignment or Pydantic's non-validating model_copy(update=...) path.

Task lifecycle¶

stateDiagram-v2
    [*] --> proposed: plan / expand

    proposed --> drafted: task_proposed_to_drafted
    drafted --> reviewed: task_drafted_to_reviewed<br/>gate: acceptance_criteria<br/>+ verification.commands
    reviewed --> ready: task_reviewed_to_ready
    ready --> claimed: task_ready_to_claimed<br/>gate: exact current PRD approval

    claimed --> in_progress: task_claimed_to_in_progress
    in_progress --> blocked: task_in_progress_to_blocked<br/>(reason required)
    blocked --> in_progress: task_blocked_to_in_progress

    in_progress --> needs_review: task_in_progress_to_needs_review<br/>(evidence submitted)

    needs_review --> accepted: task_needs_review_to_accepted<br/>gate: required_evidence present
    needs_review --> rejected: task_needs_review_to_rejected<br/>(reason required)

    accepted --> done: task_accepted_to_done
    rejected --> drafted: task_rejected_to_drafted

    done --> [*]

    note right of claimed
        Claim row holds lease +
        heartbeat. Stale leases
        are reaped by queue,
        claim, renewal, progress,
        submission, and summary paths.
    end note

    note right of needs_review
        Human or critic agent
        verdict. Rejection loops
        back through drafted.
    end note

Source: assets/diagrams/lifecycle.mmd.

Note: the evidence gate on needs_review → accepted is computed and reported at apply time but enforced only when strict_evidence resolves true; the default path approves regardless.

All 11 statuses are defined in TaskStatus and the allowed transitions are the public functions in bin/src/anvil/state/transitions.py. The module is pure (no I/O); each function returns a new Task via model_copy(update=...).

Gates on the lifecycle¶

Three named gates appear in the transition module; each raises TransitionError(gate_name=...) with a structured error envelope:

Gate	Where it fires	What it checks
`readiness_gate`	drafted → reviewed	`task.acceptance_criteria` and `task.verification.commands` must both be non-empty
`prd_status_gate` plus canonical claim binding	ready → claimed	The task's owning PRD (resolved via `task.prd_id`) must be `approved`, and that approval must bind the exact persisted revision, source digest, canonical material digest, and content event. A material reparse demotes the PRD to `draft`; active claims are not revoked.
`evidence_gate`	needs_review → accepted	Every item in `task.verification.required_evidence` must appear as a substring of at least one Evidence field. Computed and reported at apply time, but enforced only when `strict_evidence` resolves true — the default path approves regardless

Who drives each transition¶

Transition	Typical driver	CLI verb
proposed → drafted → reviewed → ready	Planner agent or human via `plan` / `review`	`anvil plan`, `anvil review tasks`
ready → claimed	Coding agent (or human)	`anvil claim T012`
claimed → in_progress	Auto on first heartbeat or file change	(implicit)
in_progress ↔ blocked	Agent or human	`anvil hook ... block`
in_progress → needs_review	Coding agent submitting evidence	`anvil submit T012 ...`
needs_review → accepted or rejected	Human reviewer or critic agent	`anvil apply T012 --approve` / `--reject`
accepted → done	Auto on `apply --approve`	(implicit)
rejected → drafted	Author revises and re-submits	`anvil plan` (re-edit)

Only drafted ↔ ready and the blocked toggle are exposed via the update_task_status MCP tool; all other transitions require a more specific CLI verb (claim, submit, apply) so that the necessary side-effects (lease creation, evidence write, claim release) happen atomically.

Event log and JSONL replay¶

Every accepted state mutation records one Event in a locked, log-first critical section:

Assign the monotonic id (E000001, E000002, ...) from log authority, append the materialized event to events.jsonl, and fsync first when strict durability is configured.
Run BEGIN IMMEDIATE, mutate the SQLite projection, insert the same event into the events table, and commit.

If SQLite fails after the append, it rolls back while the append-only log line remains. The failure is audited and forward catch-up on the next initialization applies the logged event to SQLite. The log is never truncated to disguise a post-append projection failure.

The replay guarantee is the central audit property of the engine: replaying events.jsonl from an empty database must reconstruct canonical SQLite state exactly. This is what makes the engine safe to back up by copying the resolved state directory and what makes a corrupted database recoverable.

A native anvil replay --from-events <jsonl> --into <db> subcommand ships today (bin/src/anvil/cli/replay.py — it refuses to target the live database) and rebuilds state from the event log; a CI equivalence test (tests/test_replay_equivalence.py) verifies the guarantee. anvil backup / anvil restore also ship — S3 push/pull of events.jsonl plus a replay-based restore. Only the anvil snapshot subcommand (item P9B-7, a local sqlite .backup wrapper — see roadmap.md § Snapshot / replay) remains open. Copying the resolved state directory wholesale stays as the fully-local fallback; the replay guarantee makes that safe and minimal:

# Back up before destructive work.
ANVIL_STATE_DIR="$(anvil status --path-only)"
cp -R "$ANVIL_STATE_DIR" "/backup/location/anvil-$(date +%Y-%m-%d)"

events.jsonl is the durable audit log even without replay tooling. In the opt-in in-repo layout it may be committed alongside the repository; with the default HOME workspace, back it up with the rest of the resolved state directory or use anvil backup.

Event ids are assigned inside the lock, not before it, to eliminate a read-before-lock race surfaced in PR #41 (Critic-3). The Event.id validator accepts a "PENDING" sentinel so callers can defer id assignment to the backend's apply_event method.

Storage layout¶

anvil init scaffolds this layout in the resolved state directory (not inside the plugin). By default that is a per-project HOME workspace shared by every Git worktree; ANVIL_STATE_LAYOUT=local opts into the legacy in-repo layout, and ANVIL_ROOT supplies an explicit root:

<resolved-state-dir>/
├── config.yaml         # project-level config (sync providers, lease defaults, ...)
├── state.db            # SQLite — the canonical state for ALL PRDs (WAL mode)
├── events.jsonl        # append-only audit / event log for ALL PRDs (replay source)
├── prd.md              # the default PRD source (edited by hand; `prd parse`)
├── prds/               # named release-scoped PRD sources
│   ├── v0.2.md         #   portable source filename — one per named PRD
│   └── v0.3.md
└── packets/            # generated work packets (per-task markdown / json)

One state.db and one events.jsonl hold every PRD's rows, partitioned by prd_id; there is no per-PRD database. The default PRD keeps its source at <resolved-state-dir>/prd.md; each named release PRD has a portable markdown source under <resolved-state-dir>/prds/ (resolved by prd_source_path() — cli/_helpers.py). Re-parsing one PRD replaces only that PRD's rows and leaves the others untouched.

A snapshots/ subdirectory was originally planned (and is shown in the v0 spec) but the anvil snapshot subcommand has not yet shipped — see Roadmap → Snapshot / replay. Backups today are done with anvil backup / anvil restore (S3 push/pull of events.jsonl plus a replay-based restore) or by copying the resolved state directory wholesale (cp -R); the replay guarantee makes that safe. Run anvil status --path-only before filesystem operations; see Where anvil stores its state for the complete resolution order shared by CLI, hooks, and MCP.

Concurrency model¶

Multiple humans and multiple agents must coordinate on the same canonical state without overlapping each other's work. anvil achieves this with four mechanisms layered together:

SQLite WAL + BEGIN IMMEDIATE. Every mutating operation runs inside an immediate-mode transaction, so concurrent writers serialize at the SQLite layer. Reads use WAL snapshots and do not block writers.
Claim leases with heartbeats. A Claim row carries lease_expires_at and last_heartbeat_at. The CLI's renew command (and the MCP renew_claim tool) extends the lease. Default lease is 240 minutes (configurable via the resolved config.yaml); the in-code default lives at claims/manager.py. A renewal requires new hook-observed file progress or a pending verified claim-bound attestation. Accepted attestations are generation-bound and consumed once; audit-only free-text progress does not extend a lease.
Stale-claim reaping. CLI next, claim/release/renew, packet, submit/apply, and bundle-lease paths call detect_and_release_stale() before coordinated work. MCP additionally reaps on its documented progress, status-summary, and task-status entry points (the exact list is below). CLI progress remains an audit-only note that can be recorded without an active claim, so it does not reap. Expired leases are released with release_reason="stale"; read-only listers skip reaping for latency.
Conflict groups. A ConflictGroup row names a set of tasks whose expected_files overlap. anvil next and the get_next_task MCP tool refuse to surface a task whose conflict group already has an active claim — preventing two agents from being routed to overlapping work even when neither task is itself claimed.

The shell-free PreToolUse hook dispatch check-claim path adds a final layer of safety at the Claude Code editor surface: before an Edit / Write / NotebookEdit fires, the dispatcher checks active claim scopes and surfaces a warning (non-blocking, per the hook contract) only when the target file overlaps another actor's expected_files. It stays silent when no claim holds the file.

CLI / MCP / hooks surface¶

CLI commands¶

Full reference is available at docs/cli-reference.md. The command surface assembled in bin/src/anvil/cli/__init__.py:

Lifecycle setup and inspection: init, status, describe, doctor
PRD authoring: prd list, prd source-name, prd show, prd parse, prd assess, prd find-decisions, prd resolve-decision, prd review
Planning: plan, score, assumptions, expand, deps, review tasks (sub-app)
Listing / inspecting: list, show, scan, drift, graph, conflicts
Provider reads: project snapshot, prd show (bounded JSON-only contracts)
Task claiming and delivery: next, claim, release, renew, progress, packet, submit, apply, claim-guard, gate-check
Coordinator bundles: bundle create, list, show, status, claim, renew, release, packet, progress, complete, review, finalize-review, checkpoint, reconcile, supersede
Workflows and proofs: run-workflow, merge-check, proof verify
Notifications: notify-digest
Harness config: mcp-config, install
Backup / restore: backup, restore
Migration / replay: migrate state, migrate-events, migrate-workspace, replay
Hooks: hook ... (sub-app — the active manifest uses hook dispatch)
Sync: sync ... (sub-app — sync github, sync github --health, ...)

MCP tools (36)¶

Full reference is at docs/mcp.md. Source: bin/src/anvil/mcp_server.py.

All 36 tools are registered, but the default execution surface serves 24 on the wire; the 12 planning-tagged tools (parse_prd, assess_prd, plan_tasks, score_tasks, ...) require ANVIL_MCP_PLANNING=1 (mcp_server.py tag-disables them at startup).

Default execution surface (24): task/project reads, claim/evidence mutation, dependency/conflict reads, and the complete coordinator-bundle execution/review/reconciliation loop.
Planning surface (12): init_project, parse_prd, assess_prd, review_prd, plan_tasks, score_tasks, review_tasks, apply_review_decision, edit_dependencies, find_decisions, describe_surface, and create_bundle.
Stale-sweep entry points: get_next_task, claim_task, claim_bundle, release_task, renew_claim, submit_progress, submit_completion_evidence, update_task_status, and get_project_summary.

Sync tools (sync_run, sync_health, sync_status, sync_reconcile) are not yet on the MCP surface — agents that want sync today shell out via Bash to anvil sync. See Roadmap → MCP sync tools.

Hooks (5)¶

Wired in hooks/hooks.json. The manifest calls the shell-free anvil hook dispatch <name> path via uv run --quiet --project ..., so Codex on Windows never depends on a bare bash. The legacy shell scripts remain as compatibility/test wrappers. All five hooks are non-blocking: they must exit 0 regardless of internal failure and must complete in well under their declared timeout.

Hook	Trigger	Active path / legacy wrapper	Purpose
`detect-state`	SessionStart	`anvil hook dispatch detect-state` / `detect-state.sh`	Surface project state info into the session context
`check-claim`	PreToolUse on `Edit / Write / NotebookEdit`	`anvil hook dispatch check-claim` / `check-claim.sh`	Warn (non-blocking) when the file overlaps another actor's active claim scope
`record-file-change`	PostToolUse on `Edit / Write / NotebookEdit`	`anvil hook dispatch record-file-change` / `record-file-change.sh`	Record the change against the active claim for orphan detection
`capture-evidence`	PostToolUse on `Bash`	`anvil hook dispatch capture-evidence` / `capture-evidence.sh`	When the command matches a verification pattern, buffer it as evidence for the active claim
`heartbeat`	PostToolUse on `Edit / Write / NotebookEdit` and on `Bash`	`anvil hook dispatch heartbeat` / `heartbeat.sh`	Renew the active claim's lease

Skills (8)¶

Workflow choreography lives in skills/*/SKILL.md — start-prd, prd, plan, claim, execute, finish, state-ops, resolve-decisions.

Skill frontmatter is always loaded into the model's context (it is the plugin's command surface), so the combined skill footprint is kept under an explicit token budget enforced in CI — see context-budget.md and tests/test_token_budget.py.

Plugin agents (5)¶

Defined in agents/*.md:

planner — drafts feature / task decomposition from a parsed PRD
critic — reviews PRD or task drafts; produces an approve / reject / needs_changes verdict
sentinel — pre-merge verification
state-keeper — operational hygiene: orphan claims, drift, schema migrations
docs-scribe — keeps docs/ synchronised with shipped behaviour

Each agent's frontmatter pins tools: (least privilege).

Where to read the code¶

Map from architectural layer to source file. Every layer of this document points at a file you can grep.

Layer	File(s)
Entry: CLI assembly	`bin/src/anvil/cli/__init__.py`
Entry: MCP server (36 tools)	`bin/src/anvil/mcp_server.py`
Entry: hooks manifest	`hooks/hooks.json`
Type system	`bin/src/anvil/state/models.py`
Transitions (pure)	`bin/src/anvil/state/transitions.py`
Backend Protocol	`bin/src/anvil/state/backend.py`
SQLite impl + schema	`bin/src/anvil/state/sqlite.py`, `schema.py`
Event payloads	`bin/src/anvil/state/payloads.py`
Canonical-state snapshot (replay-equivalence)	`bin/src/anvil/state/snapshot.py`
Hash-chained event ids (git-backed events)	`bin/src/anvil/state/hashing.py`
Durable storage seam (push/pull `events.jsonl` to a remote store)	`bin/src/anvil/state/durable.py`
Per-PRD status rollup	`bin/src/anvil/state/rollup.py`
Claims manager	`bin/src/anvil/claims/manager.py`
Stale reaping	`bin/src/anvil/claims/stale.py`
Planning (template + LLM + scoring)	`bin/src/anvil/planning/`
Context (work packets)	`bin/src/anvil/context/packets.py`
Review gates	`bin/src/anvil/review/gates.py`
Git ops	`bin/src/anvil/git_ops/`
Brownfield scan / ingest (`<resolved-state-dir>/scan.db` → draft PRD + task graph)	`bin/src/anvil/scan/`
Declarative workflows (`<resolved-state-dir>/workflows/*.yaml` parse + run)	`bin/src/anvil/workflows/`
Ed25519 proof signing	`bin/src/anvil/signing.py`
Task-id → safe path/branch component	`bin/src/anvil/naming.py`
Sync Protocol + registry	`bin/src/anvil/sync/provider.py`, `registry.py`
GitHub provider	`bin/src/anvil/sync/providers/github_issues.py`
Reconciliation	`bin/src/anvil/sync/reconciliation.py`
Plugin config	`bin/src/anvil/config.py`
Clock abstraction	`bin/src/anvil/clock.py`

What is NOT here yet¶

This document describes the current shipped behaviour only. The full backlog of planned-but-not-yet-shipped items is in roadmap.md; the notable open themes:

additional workflow-aware sync providers and provider-specific configuration;
webhook-based sync and remaining conflict-resolution wiring;
the local SQLite anvil snapshot backup/retention command (distinct from the shipped read-only anvil project snapshot provider operation);
an MCP sync surface; and
focused agent, skill, hook, and documentation hygiene.

Each item carries a backlog id (P9B-N from the Phase 9 backlog or P11-XX-XN from the Phase 11 backlog) preserved across audits — see roadmap.md for per-item acceptance criteria, file pointers, and welder-effort estimates.
